Features:
- Brushless motor design provides extremely high speed, top efficiency, and low power consumption.
- Full aluminum case design
- 4096 resolution and SIC (Single Integrated Circuit) for the highest performance and durability.
- Light weight design
- All Aluminum case for the best thermal dissipation and durability.
- Strong Metal Gear
- Glitch-free
- Sophisticated error correction
- High-Speed, High-precision 12-bit AD converter and CPU calculation
- Fail safe
- Over current protection
- Over temperature protection
- Start sonorant
- 760us narrow band
Specifications:

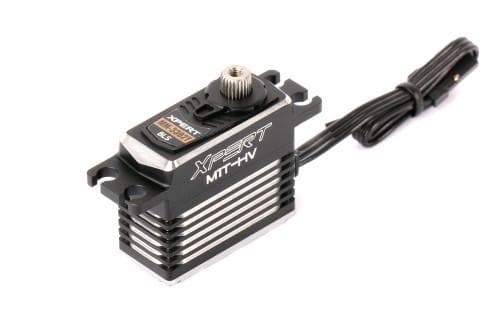

- Type: Mini-size Tail Servo
- Power Supply: 6.0V~8.4V
- Speed (sec/ 60°):
@6.0V: .068 sec/60°
@7.4V: .055 sec/60°
@8.4V: .049 sec/60°
@6.0V: 118.95 oz-in
@7.4V: 146.71 oz-in
@8.4V: 166.56 oz-in
@6.0V: 8.57 kg-cm
@7.4V: 10.57 kg-cm
@8.4V: 12 kg-cm
- Dimensions: 33.6x15x29.5 mm
- Weight: 40.5 g
- Frequency: 200/333 Hz
- Range: 50~400 Hz
- Center Pulse Length: 760 μs
- Applications: Helicopter Tail
